Product Catalog

HomeProduct CatalogVascular InterventionsPeripheral and Coronary InterventionsMicro-Access/MST Introducer Kits & Sets

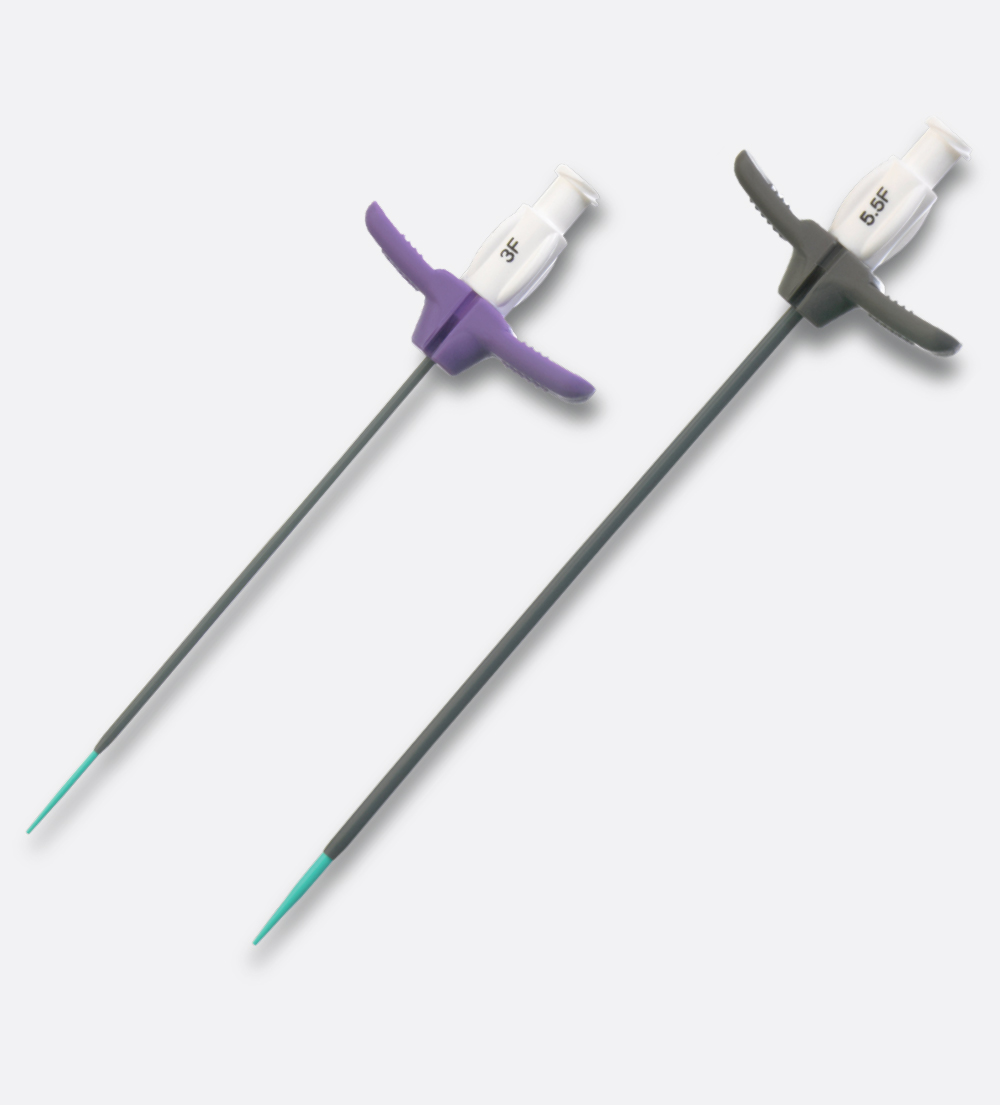

Micro-Access/MST Introducer Kits & Sets

Micro-Access/MST Introducer Kits & Sets

Atraumatic Access with Consistent Performance and Protection

For smaller access sites and inury prevention.

Kit includes an introducer/dilatory assembly with standard kit components plus safety accessories.

SKU: KIT-010 Categories:Peripheral and Coronary InterventionsVascular Access
  • Description
  • Information

Description

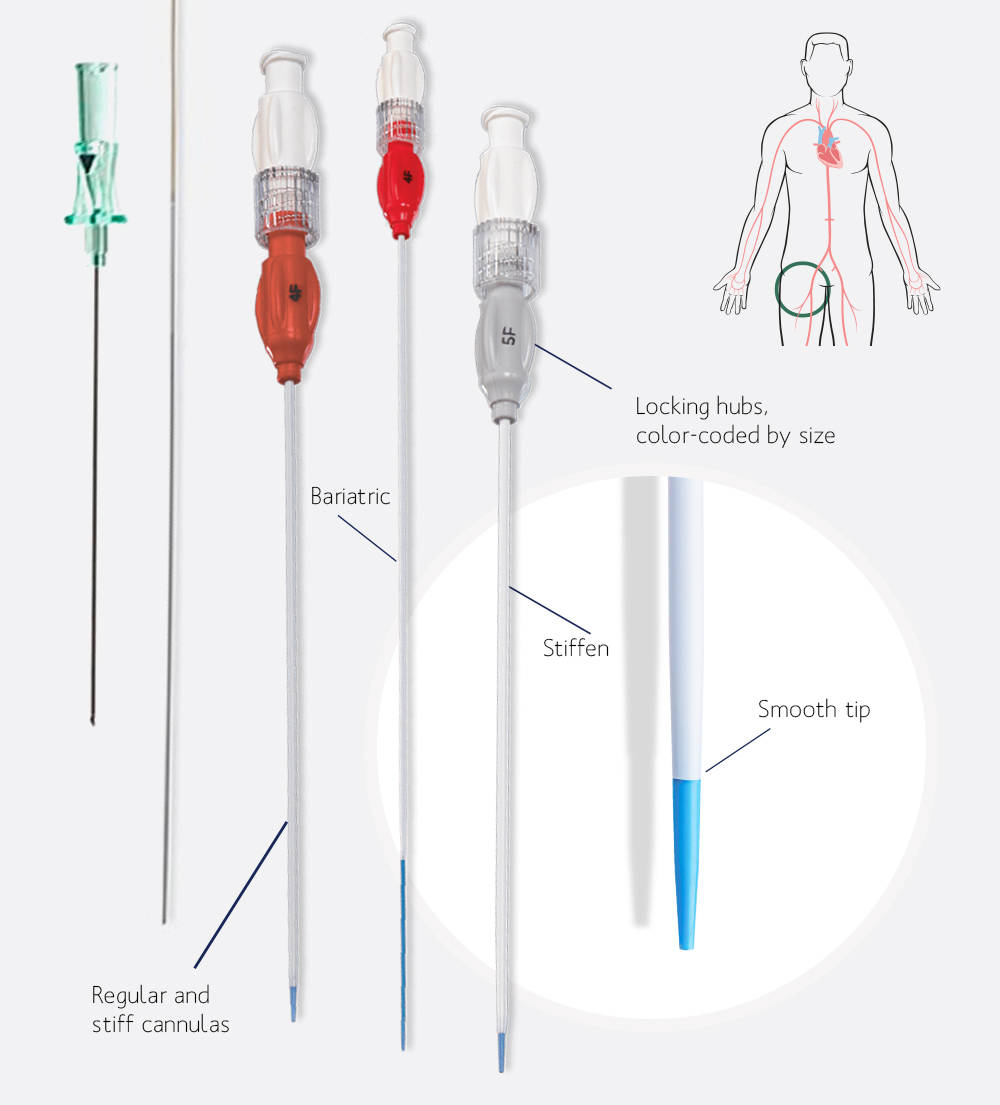

Atraumatic Access for Smaller Sites

~1/2 the insertion force*

  • Smaller and half-sizes for smaller access sites and a precise introduction
  • Ergonomic design with smooth, sheath-to dilator transitions facilitates ease of insertion and minimizes tissue trauma
  • Silicone coating further aids in reducing trauma

Consistent Performance

  • Easy-to-thread, locking hub prevents dilator back out
  • Funnel shaped lead-in eases wire and catheter insertion
  • Ergonomic wings aid in a successful separation of the tearaway
  • Smooth peel helps maintain device placement

Protection

  • Safety guidewire introducer needle and a #11 safety scalpel help minimize the risk of accidental patient and provider injuries
Microintroducers

Ordering Information

Micro-Access Tearaway Introducer Kits

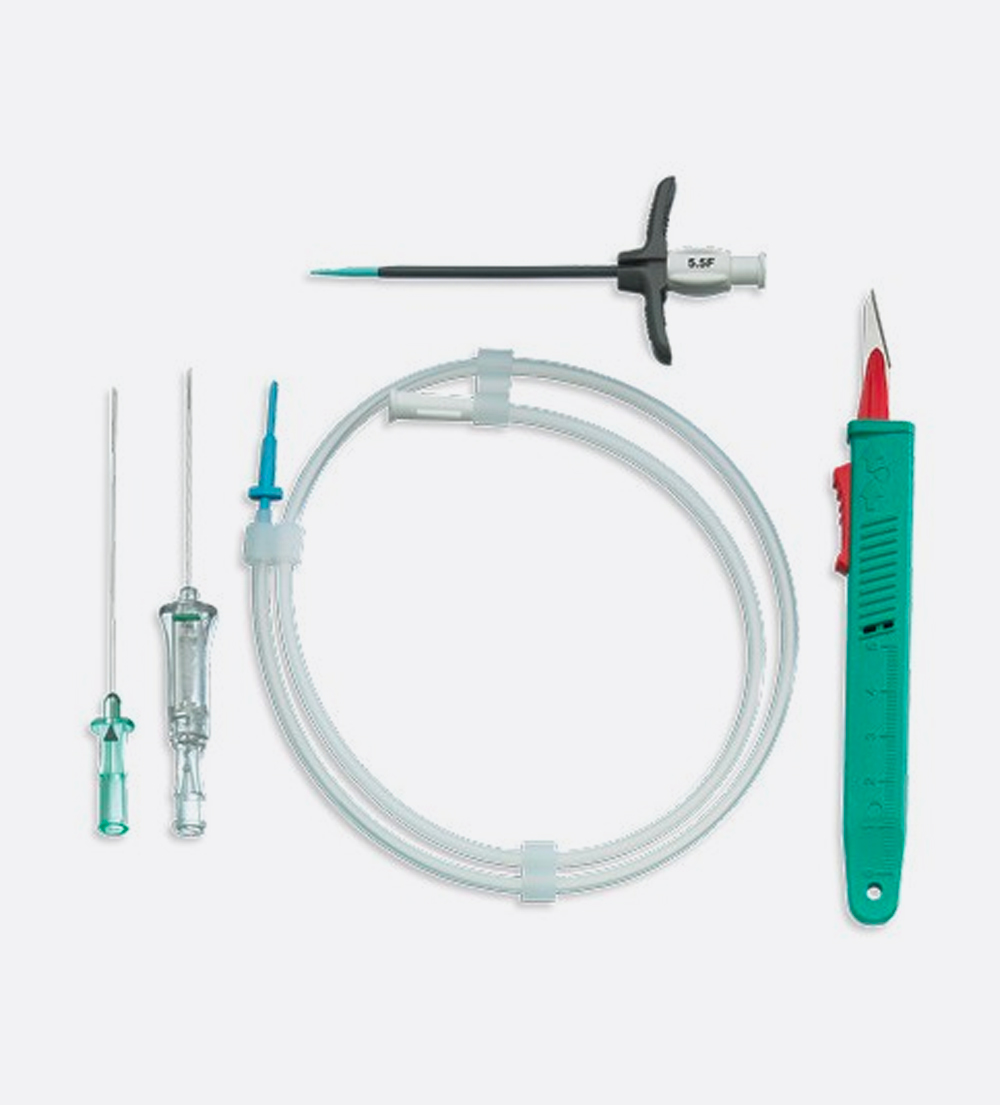

Kit contents: PTFE tearaway introducer set, a nitinol mandrel guidewire, a safety guidewire introducer needle, a #11 safety scalpel, and a standard guidewire introducer needle

5cm introducer kits contain a .018“x 40cm marked nitinol mandrel wire with a stainless steel soft tip

Catalog No.SizeNeedleBox Quantity
KIT-010-003F x 5cm21G x5cm safety5
KIT-010-013.5F x 5cm21G x5cm safety5
KIT-010-024F x 5cm21G x5cm safety5
KIT-010-034.5F x 5cm21G x5cm safety5
KIT-010-045F x 5cm21G x5cm safety5
KIT-010-055.5F x 5cm21G x5cm safety5

7cm introducer kits contain a .018“x 40cm nitinol mandrel wire witha stainless steel soft tip

Catalog No.SizeNeedleBox Quantity
KIT-010-376.5F x 7cm21G x75cm safety5

10cm introducer kits contain a .018“x 65cm marked nitinol mandrel wire with a stainless steel soft tip

Catalog No. Size Needle Box Quantity
KIT-010-12 4F x 10cm 21G x7cm safety 5
KIT-010-14 5F x 10cm 21G x7cm safety 5
KIT-010-15 5.5F x 10cm 21G x7cm safety 5
KIT-010-17 7F x 10cm 21G x7cm safety 5

Micro-Access Tearaway Introducer Sets

Set contents: PTFE sheath and dilator only

5cm introducer sets

Catalog No. Size Needle Box Quantity
INT-106-00 3F x 5cm .018″ 10
INT-106-01 3.5F x 5cm .018″ 10
INT-106-02 4F x 5cm .018″ 10
INT-106-03 4.5F x 5cm .018″ 10
INT-106-04 5F x 5cm .018″ 10
INT-106-05 5.5F x 5cm .018″ 10
INT-106-06 6F x 5cm .018″ 10

7cm introducer sets

Catalog No. Size Needle Box Quantity
INT-107-30 3F x 7cm .018″ 10
INT-107-40 4F x 7cm .018″ 10
INT-107-50 5F x 7cm .018″ 10
INT-107-60 6F x 7cm .018″ 10

10cm introducer sets

Catalog No. Size Needle Box Quantity
INT-106-10 3F x 10cm .018″ 10
INT-106-11 3.5F x 10cm .018″ 10
INT-106-12 4F x 10cm .018″ 10
INT-106-13 4.5F x 10cm .018″ 10
INT-106-14 5F x 10cm .018″ 10
INT-106-15 5.5F x 10cm .018″ 10
INT-106-16 6F x 10cm .018″ 10
INT-106-20 6.5F x 10cm .018″ 10
INT-106-17 7F x 10cm .018″ 10
Note: For 3cm tearaway sheaths, see MicroSlide® product line
